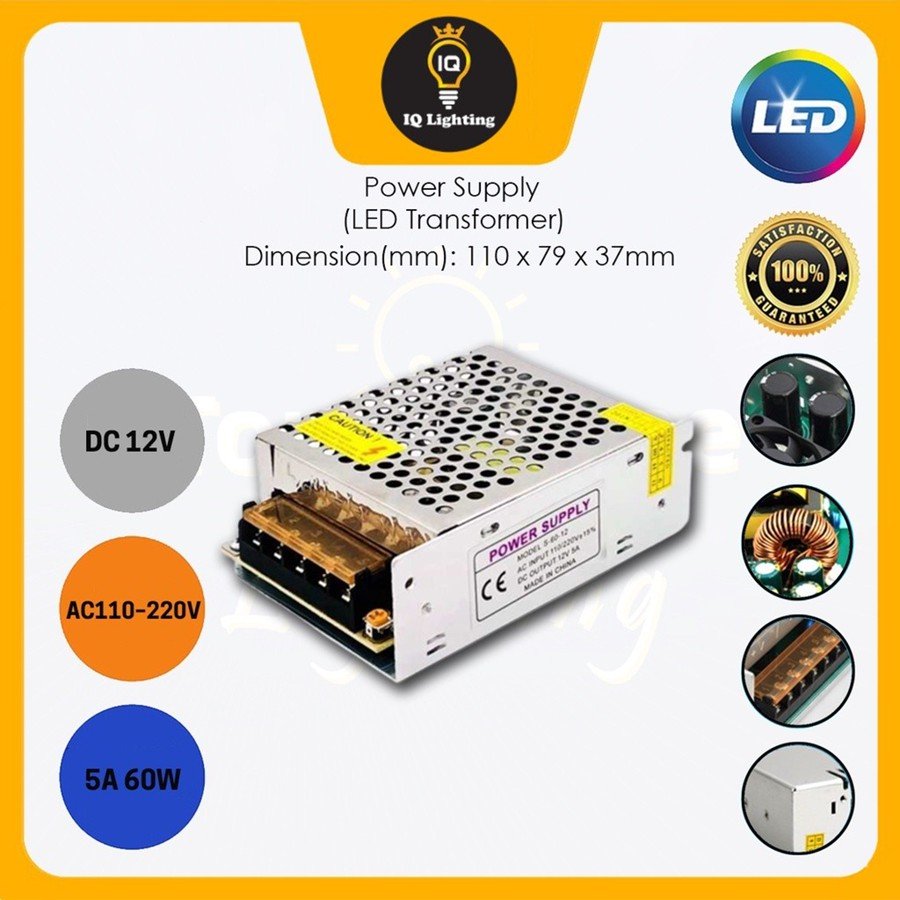

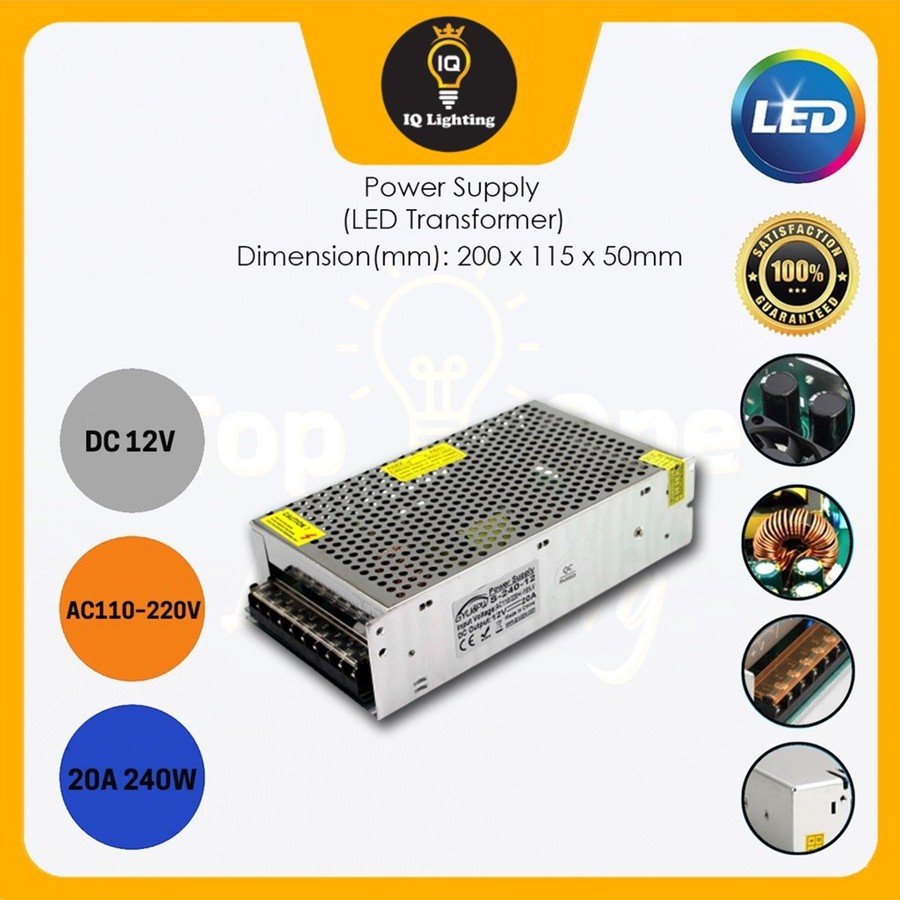

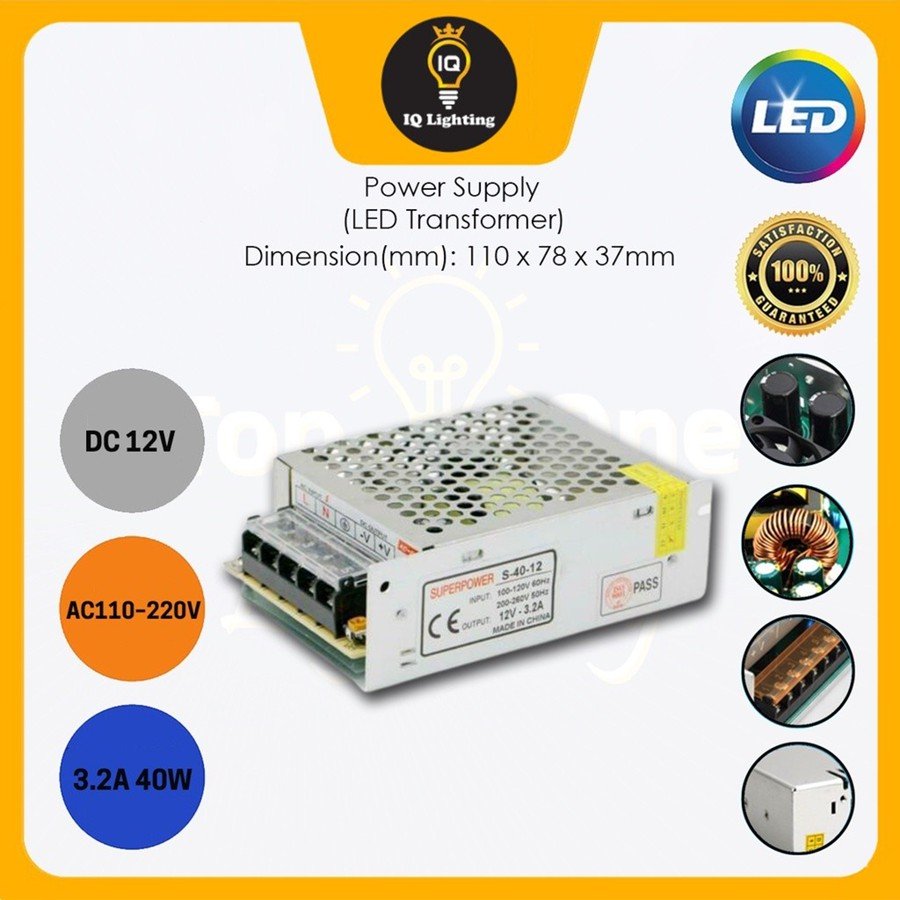

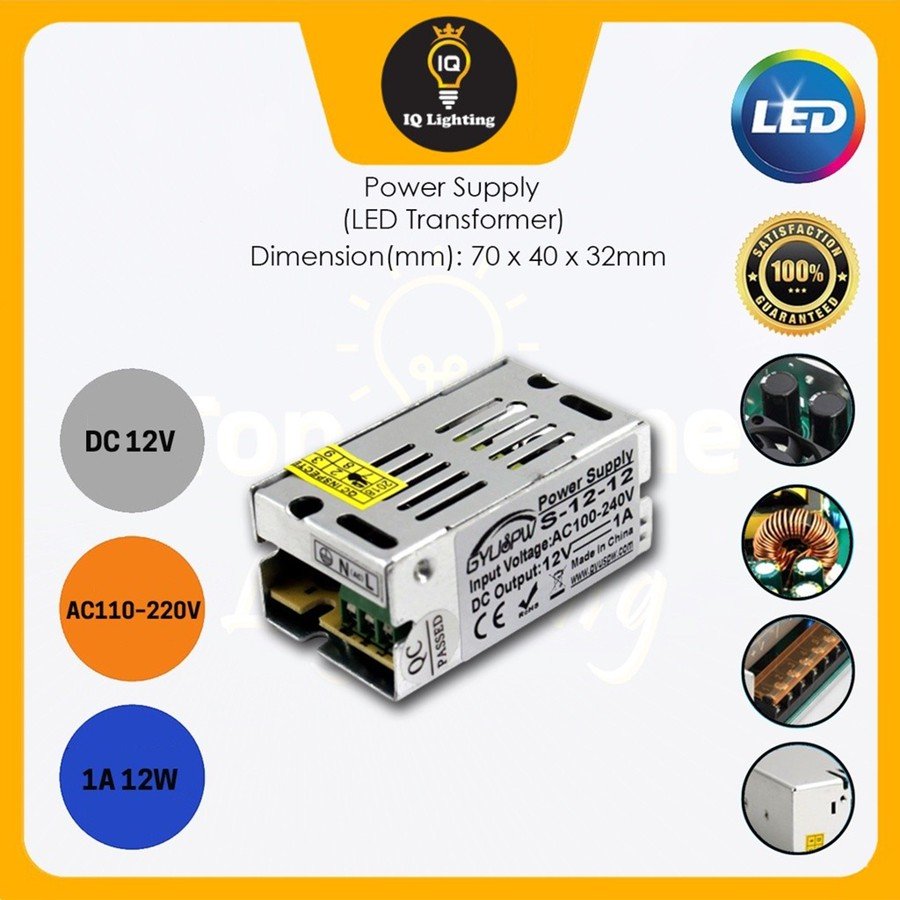

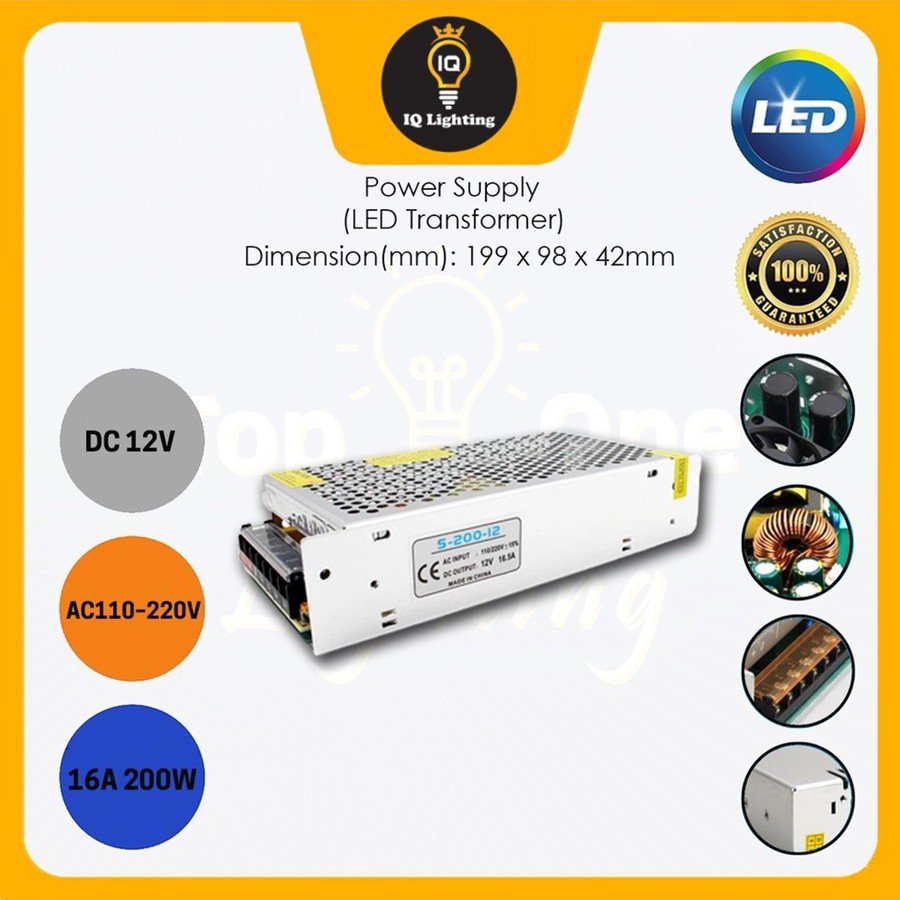

Power Supply 12V AC TO DC for CCTV LED Panel LED Strip 3.2A 5A 10A 20A 30A 38W 60W 120W 240W 360W

Description:

100% copper filter inductor enables this AC to DC 12V Transformer to output stable voltage and create high power conversion rate, thus achieving long service life. High quality magnetic copper coils group make output very efficient even after long time transmission. And brand new electrolytic capacitor offers a large allowance to make it be resistant to impact.

Specifications:

1. Power: 12W / 25W / 40W / 60W / 80W / 100W / 120W / 150W / 180W / 200W / 240W / 360W /400W

2. Ampere(A) : 1A / 2A / 3.2A / 5A / 6.5A / 8.5A / 10A / 12.2A / 15A / 16A / 20A / 30A / 33A

3. Input voltage: AC110 – 220V

4. Output voltage: DC12V

5. Material: Electronic components and Metal

6. Protection: With overload protection, over voltage protection and short circuit protection

7. Lower Power consumption, Lower Temperature, high efficiency

8. LED indicator for power on

9. Adopt high power transformer

Connection:

L, N: AC power input

GND: DC power output “-“

V: DC power output “+”

+V / ADJ: Adjust the output voltage

Safety Compliance: CCC/ FCC / CE

Working Temperature: 0~40

Storage Temperature: -20~60

Ambient Humidity: 0~95% Non-Condensation

Compatible with 3528, 2835 ,3014, 5050, 5630 ,5730 Led strip lights and all CCTV

Features:

1. Stable Output Voltage 12V – The LED strip light power supply adopts magnetic copper coils groups to make output voltage very stable and efficient even after long time transmission.

2. Strong Impact Resistance – Brand new electrolytic capacitor offers a large allowance to achieve strong impact resistance to make voltage output very stable.

3. High Power Conversion Rate – This AC to DC 24V Transformer comes with a built-in 100% copper filter inductor to make small output wave and strong anti-interference for high power conversion rate. Causing no waste.

4. Fast Heat Dissipation – Mesh design and high quality metal help dissipate heat to achieve fast heat dissipation.

5. Long Service Life – High quality metal and stable transmission enable it to work for a very long time. Gives a super long service life.

DC 24V 10A

Input: 110V/220V AC; Output: DC 24V 10A max. Output voltage is adjustable 10%. Three sets of output Channel.

Safety features: Automatic overload cut-off, over Voltage cut-off, automatic thermal cut-off, short circuit protection.

Voltage consistency: There is no voltage fluctuations to speak of at power on, during transmit, receive, or at power off.

There is no fan inside the case, silent running. Metal case with many holes makes heat dissipation more efficient.

Great for LED Strips, 3D Printer, ham radio transceiver, CCTV cameras ，car subwoofer amp, audio amplifier, wireless router, ADSL Cats, HUB, audio/ video power supply. Indoor use only!
