• General Information
○ Light source color: 865 Daylight (6500K) / 840 Cool White (4000K) / 830 Warm White (3000K)
○ Light source replaceable: No
○ Driver included: Yes
○ Optical cover/lens type: Glass bowl/cover
○ Luminaire light beam spread: 110°
○ Control interface: –
○ Connection: Flying leads / wires
○ Cable: Cable 0.3 m without plug
○ Protection class IEC: Safety class I
○ Flammability mark: For mounting on normally flammable surfaces
○ CE mark: CE mark
○ Optic type outdoor: Symmetrical wide beam
○ Constant light output: No
○ Number of products on MCB of 16 A type B: 44
○ Light source engine type: LED
○ Serviceability class: Class C, luminaire without serviceable parts, not serviceable
• Operating and Electrical
○ Input Voltage: 220 to 240 V
○ Input Frequency: 50 to 60 Hz
○ Inrush current: 1.11 A
○ Inrush time: 0.0132 ms
○ Power Factor (Min): 0.9
• Controls and Dimming
○ Dimmable: No

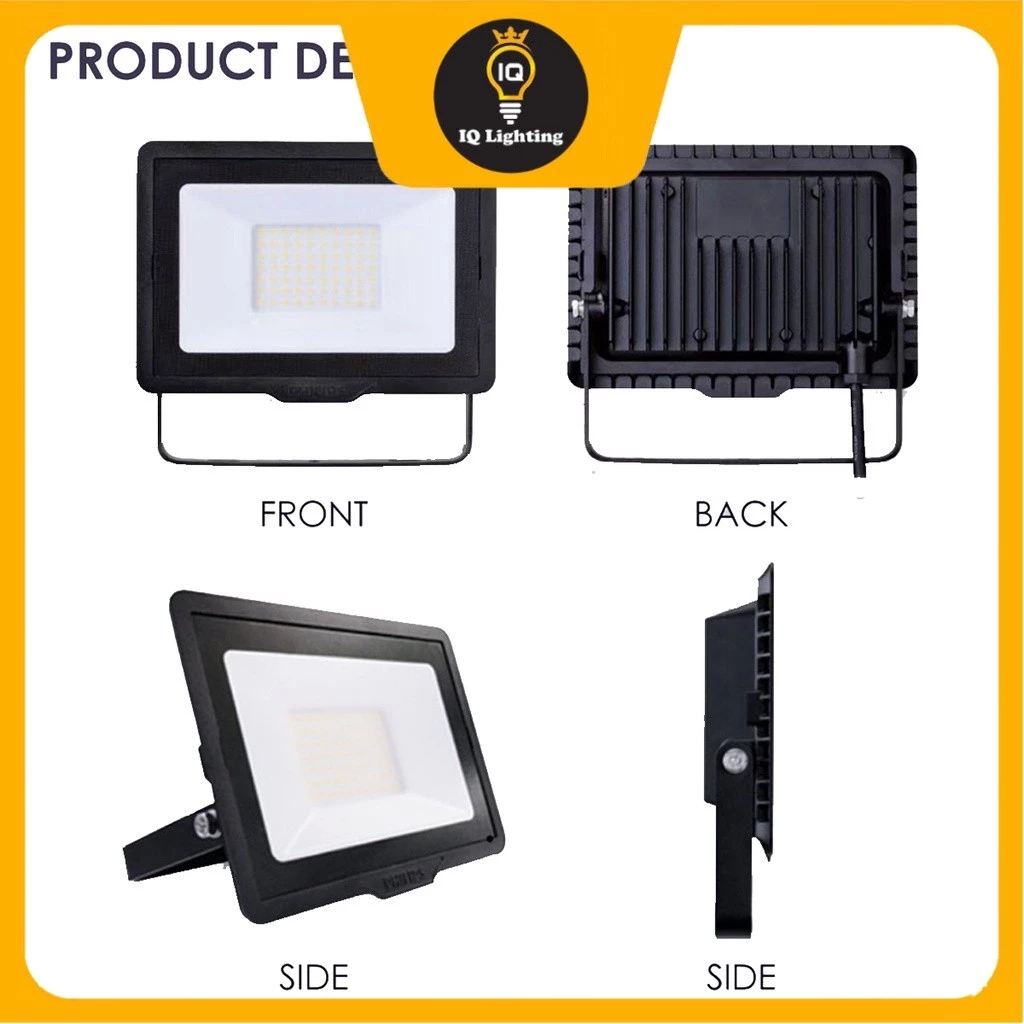

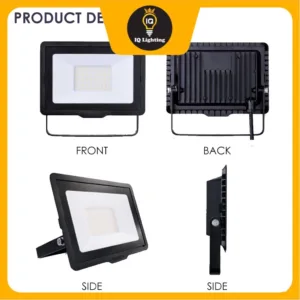

• Mechanical and Housing
○ Housing Material: Aluminum die-cast
○ Optical cover/lens material: Glass
○ Fixation material: Steel
○ Mounting device: Mounting bracket adjustable
○ Optical cover/lens shape: Flat
○ Optical cover/lens finish: Textured
○ Measurement:-

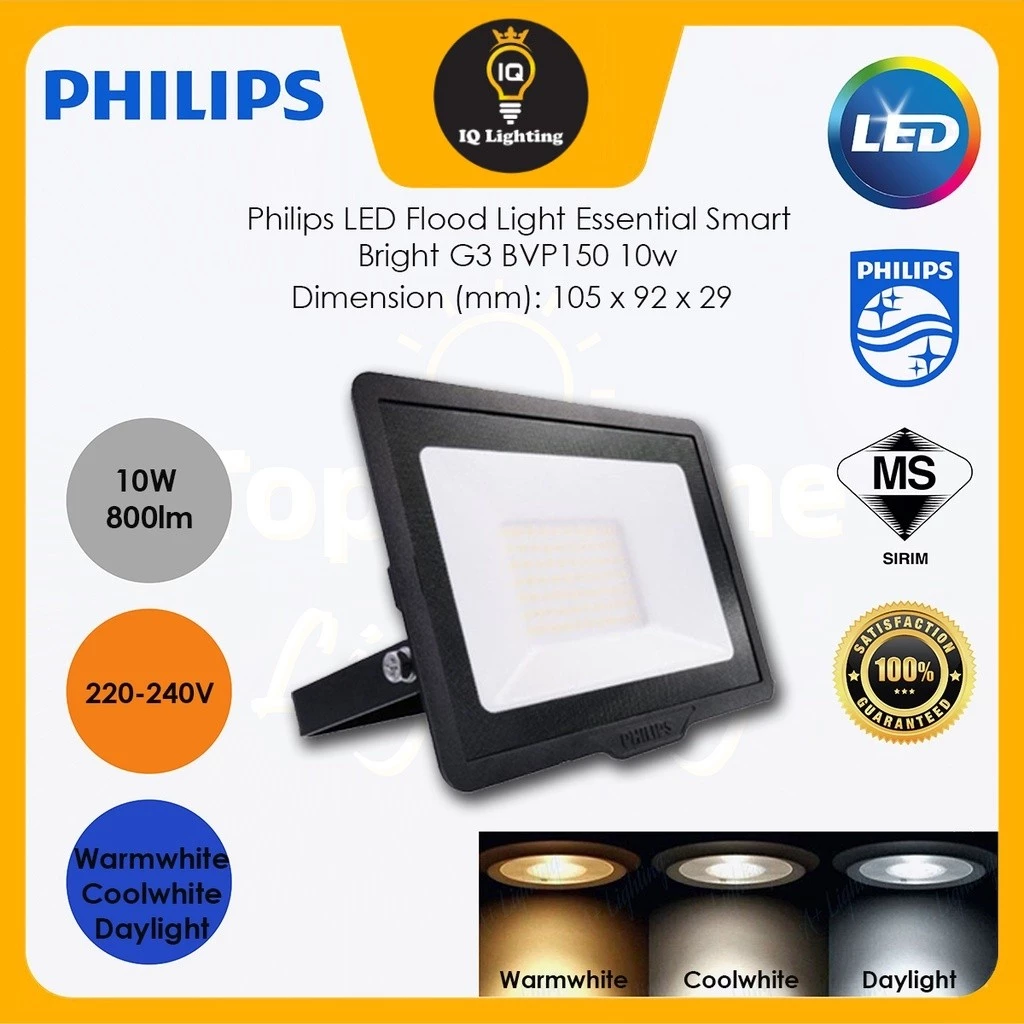

◘ ( 10w ) – 105 mm * 92 mm * 29 mm
◘ ( 20w ) – 140 mm * 110 mm * 29 mm
◘ ( 30w ) – 170 mm * 125 mm * 30 mm
◘ ( 50w ) – 200 mm * 145 mm * 33 mm
◘ ( 70w ) – 245 mm * 185 mm * 35 mm
○ Color: Black
• Approval and Application
○ Ingress protection code: IP65 [ Dust penetration-protected, jet-proof]
○ Mech. impact protection code: IK06 [ 1 J]
○ Surge Protection (Common/Differential): Surge protection level until 2 kV
• Initial Performance (IEC Compliant)
○ Initial luminous flux (system flux):-
◘ ( 10w ) – 800 lm
◘ ( 20w ) – 1700 lm
◘ ( 30w ) – 2500 lm
◘ ( 50w ) – 4200 lm
◘ ( 70w ) – 5900 lm
○ Luminous flux tolerance: +/-10%
○ Initial LED luminaire efficacy: 85 lm/W
○ Init. Corr. Color Temperature: 3000 K / 4000 K / 6500 K
○ Init. Color Rendering Index: >80
○ Initial chromaticity: SDCM<7
○ Power consumption tolerance: +/-10%
• Application Conditions
○ Ambient temperature range: -40 to +50 °C
