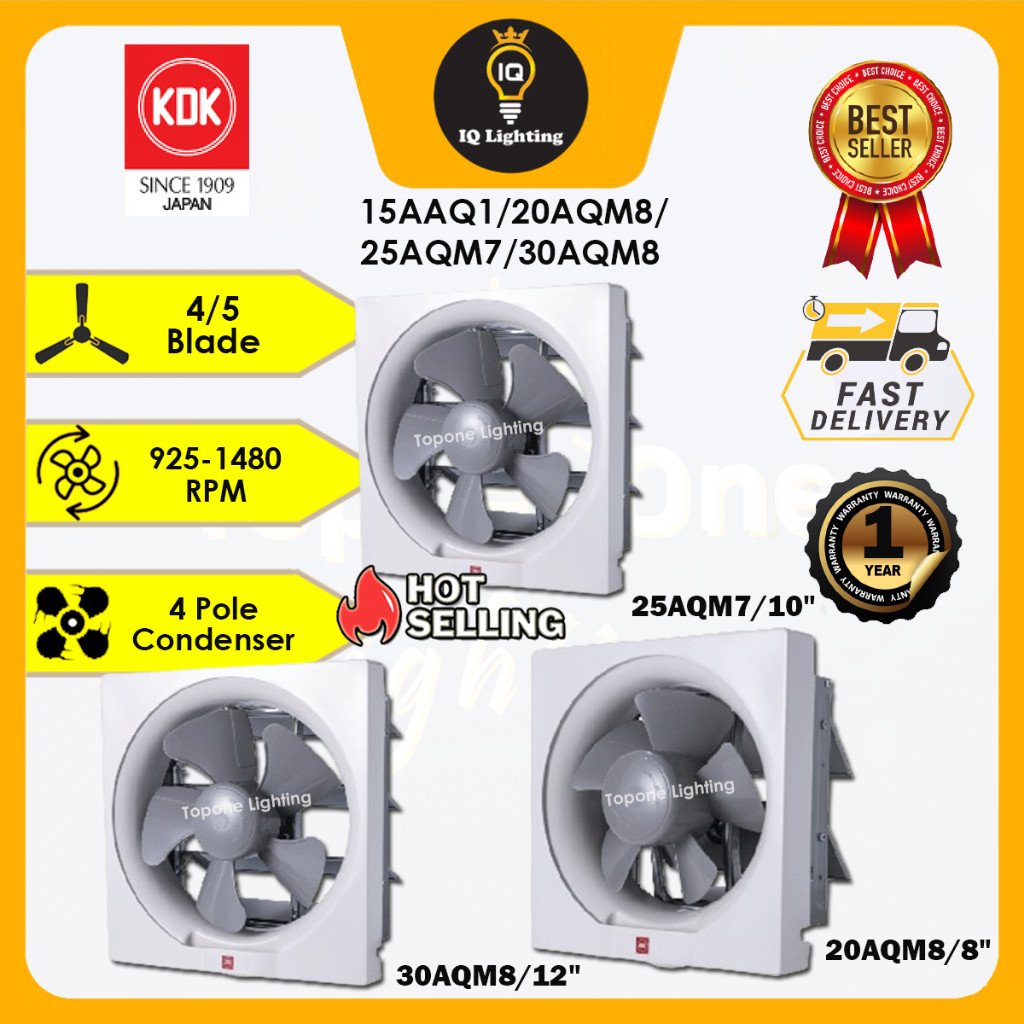

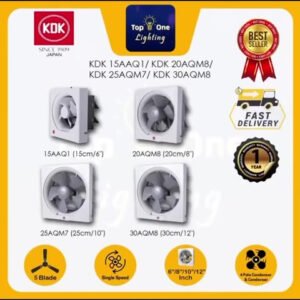

KDK Wall Mounted Exhaust Ventilating Fan KDK 15AAQ1/ KDK 20AQM8/ KDK 25AQM7/ KDK 30AQM8 排风扇

*IMPORTANT NOTICE*

**Notice : Maximum 2 units per order due to courier service weight limit

**If want to buy more than 2 units, please order separately, thanks.

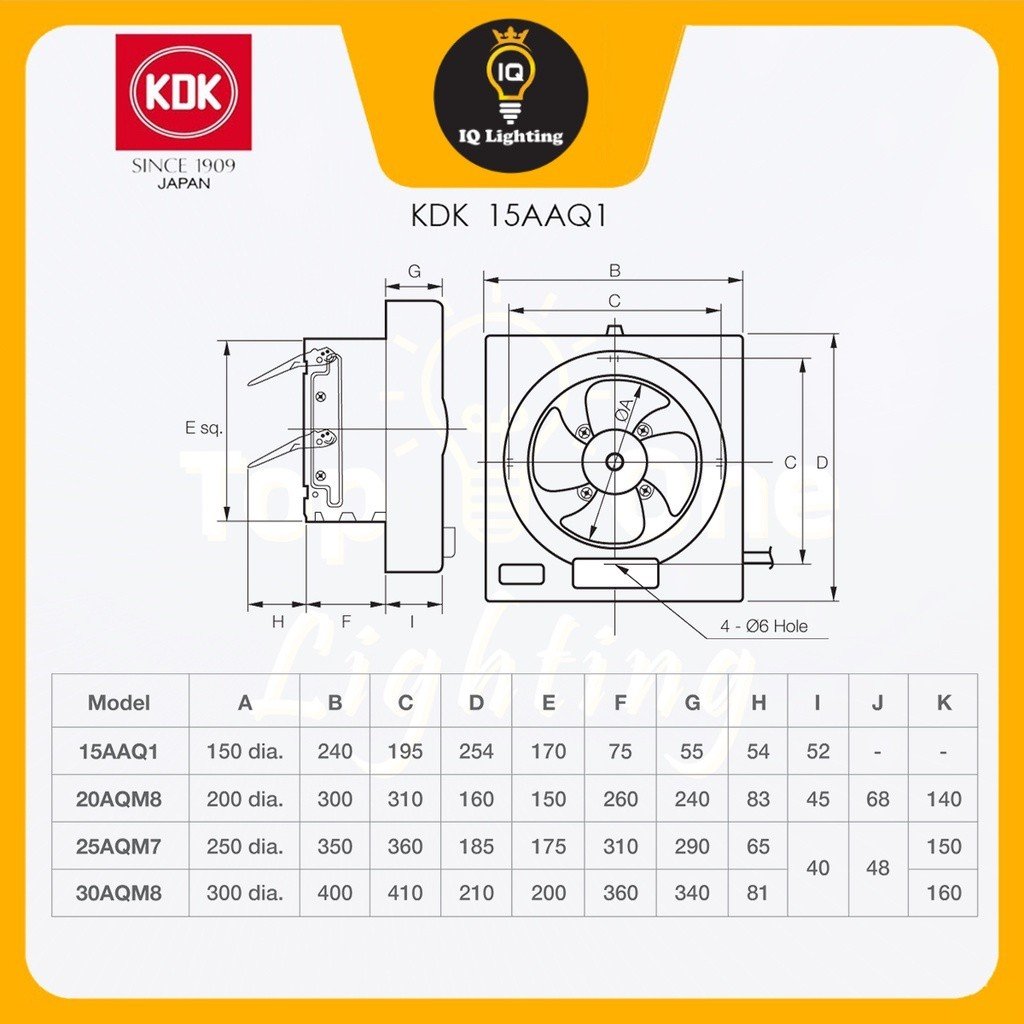

** 15AAQ1 fan blade is 15cm , Cut hole is 20cm**

** 20AQM8 fan blade is 20cm , Cut hole is 25cm**

** 25AQM7 fan blade is 25cm , Cut hole is 30cm**

** 30AQM8 fan blade is 30cm , Cut hole is 35cm**

Thank you!

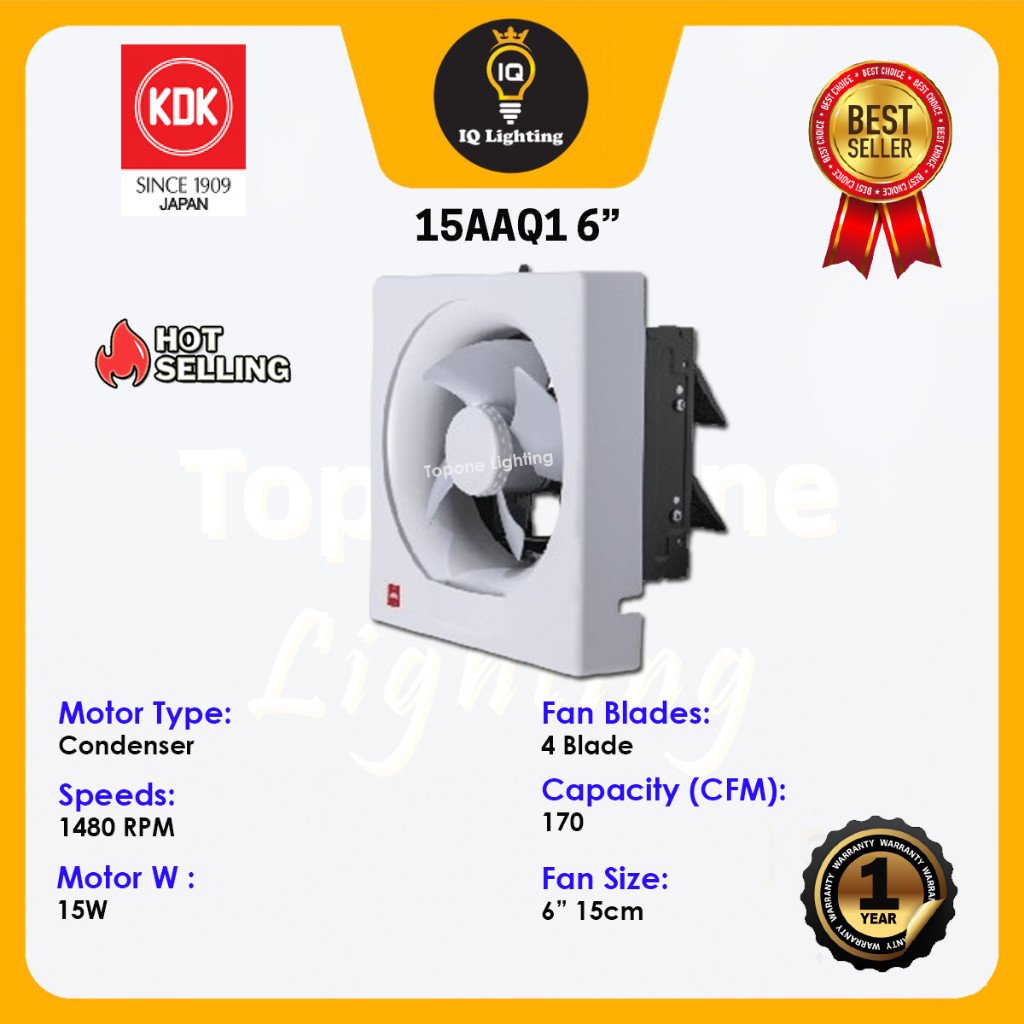

MODEL – 15AAQ1 (15cm/6″)

– Excellent for small room, bathroom and kitchen

– High efficiency motor

– Automatic shutter

– Easy installation and easy clean

– Thermal safety fuse

(A) Model: 15AAQ1

~ RPM: 1480

~ Capacity (CFM): 170

~ Motor W: 15

~ Motor Rating: 220 – 240V / 50 Hz

~ Motor Type: Condenser

~ Noise Level (dB): 31

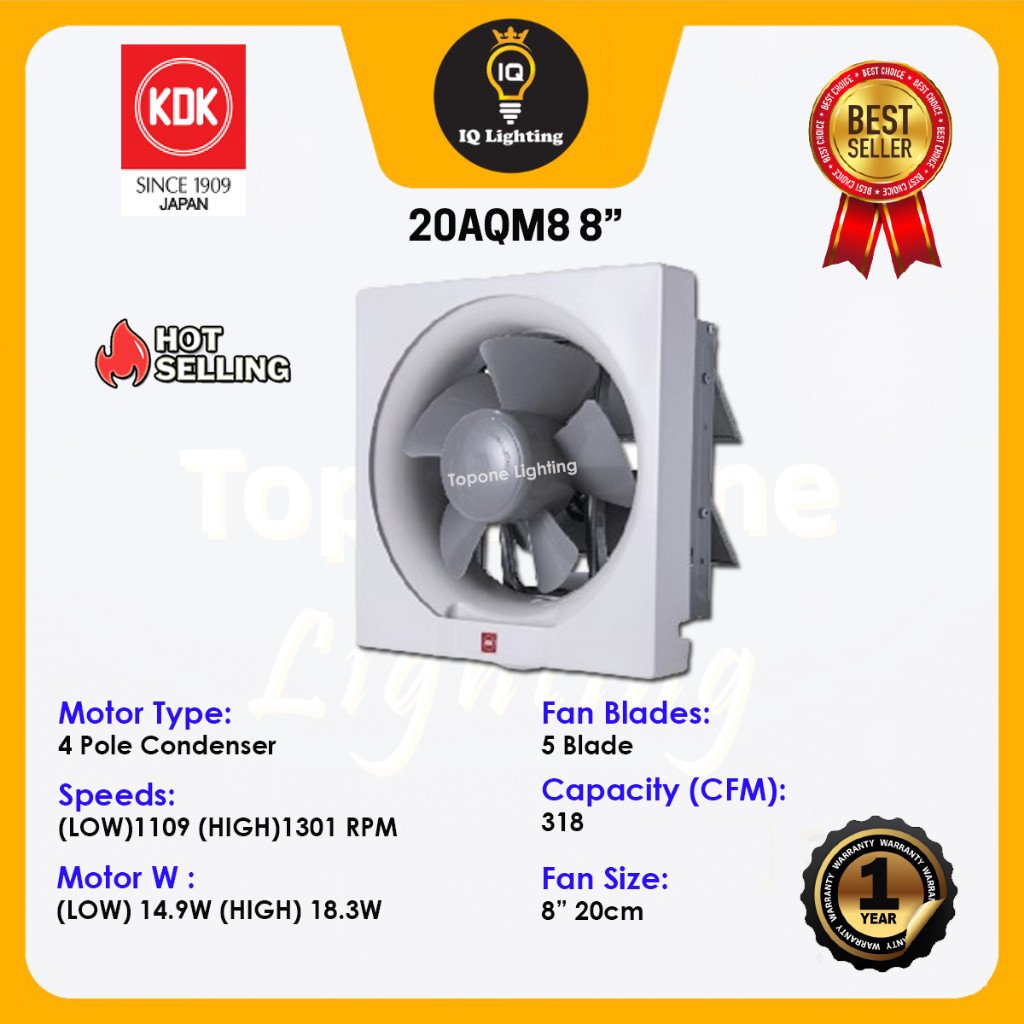

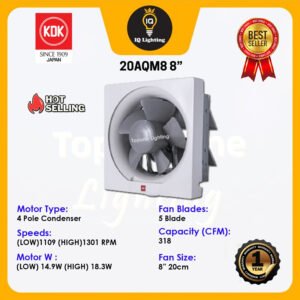

MODEL – 20AQM8 (20cm/8″)

FEATURES

・Q-Blade for perfect balance, quiet operation and high efficient of airflow

・High efficient motor for energy saving

・Ball bearing motor for smooth rotation and excellent durability

・Automatic shutter

・Easy installation and easy clean

・Thermal safety fuse

(B) Model: 20AQM8

~ RPM: 1109 – 1301

~ Capacity (CFM): 318

~ Motor Rating : 240V / 50Hz

~ Motor W: Low – 14.9 High – 18.3

~ Motor HP: 0.02

~ Motor Type: 4 Pole Condenser

~ Noise Level (dB): 37

MODEL – 25AQM7 (25cm/10″)

FEATURES

・Q-Blade for perfect balance, quiet operation and high efficient of airflow

・High efficient motor for energy saving

・Ball bearing motor for smooth rotation and excellent durability

・Automatic shutter

・Easy installation and easy clean

・Thermal safety fuse

(C) Model: 25AQM7

~ RPM: 999 – 1221

~ Capacity (CFM): 530

~ Motor Rating : 240V / 50Hz

~Motor W: Low – 25.2 High – 30.8

~ Motor HP: 0.03

~Motor Type : 4 Pole Condenser

~ Noise Level (dB): 39

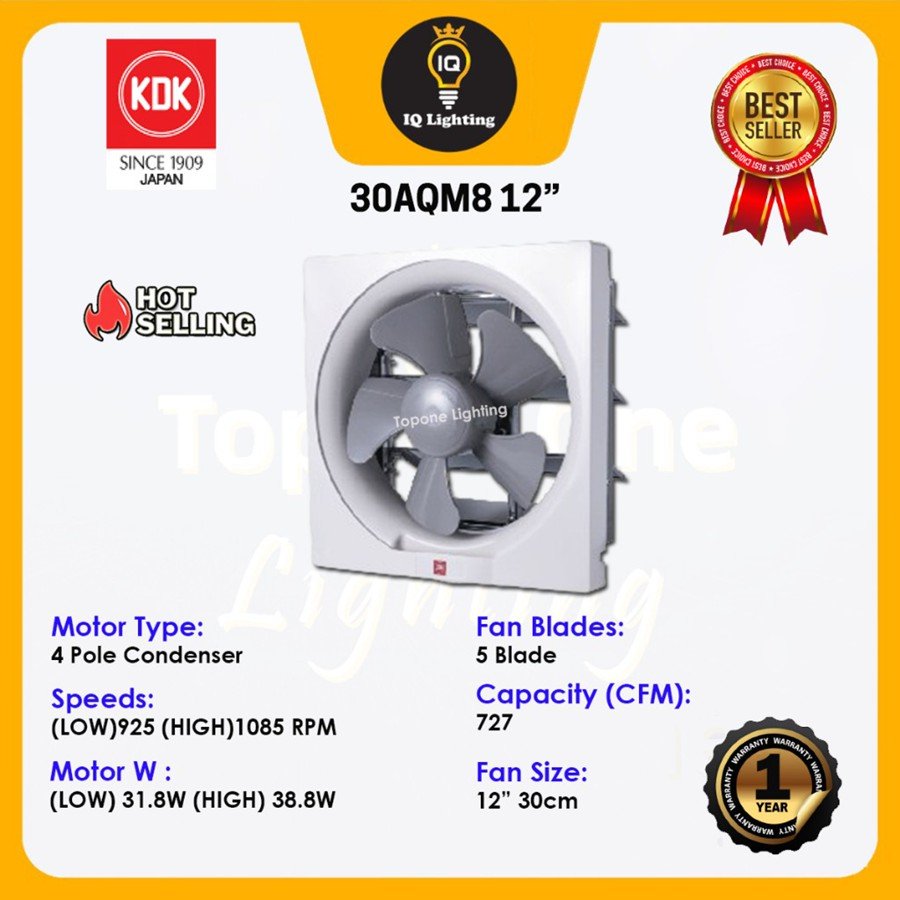

MODEL – 30AQM8 (30cm/12″)

FEATURES

・Q-Blade for perfect balance, quiet operation and high efficient of airflow

・High efficient motor for energy saving

・Ball bearing motor for smooth rotation and excellent durability

・Automatic shutter

・Easy installation and easy clean

・Thermal safety fuse

SPECIFICATIONS

(D) Model: 30AQM8

~ RPM: 925 – 1085

~ Capacity (CFM): 727

~ Motor Rating : 240V / 50Hz

~ Motor W: Low – 31.8 High – 38.8

~ Motor HP: 0.05

~ Motor Type: 4 Pole Condenser

~ Noise Level (dB): 45
